0577-65213306Z19A型脹緊聯軸套 |
|||||||||||
|
|||||||||||
| 詳細信息 | |||||||||||
|

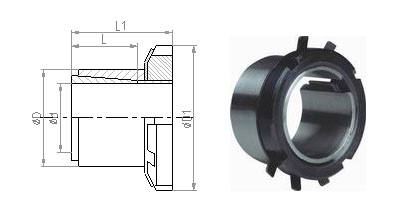

Z19A型脹緊聯軸套基本尺寸與技術參數 |
|||||||||||
|
基本尺寸（mm） |
額定負荷 |
螺母 |
脹套與軸結合面上的壓力 |
脹套與轂結合面上的壓力 |
質量 |
||||||
|
d |
D |
D1 |
L1 |
L |
軸向力 |
轉矩 |
d1 |
擰緊力矩 |
|||
|
14 |
25 |
32 |
16.5 |
6.5 |
5.1 |
38 |
M20×1 |
95 |
200 |
110 |
0.05 |
|
15 |
25 |
32 |
16.5 |
6.5 |
5.5 |
41 |
M20×1 |
95 |
185 |
110 |
0.04 |
|
16 |
25 |
32 |
16.5 |
6.5 |
5.45 |
43 |
M20×1 |
95 |
174 |
110 |
0.04 |
|
17 |
26 |
32 |
16.5 |
6.5 |
5.5 |
47 |
M20×1 |
95 |
164 |
107 |
0.04 |
|
18 |
26 |
32 |
16.5 |
6.5 |
5.4 |
49 |
M22×1 |
95 |
155 |
107 |
0.04 |
|
18 |
30 |
38 |
16.5 |
6.5 |
6.6 |
58 |
M25×1.5 |
160 |
185 |
112 |
0.06 |
|
19 |
30 |
38 |
18 |
6.5 |
6.6 |
62 |
M25×1.5 |
160 |
176 |
112 |
0.06 |
|
20 |
30 |
38 |
18 |
6.5 |
6.6 |
66 |
M25×1.5 |
160 |
167 |
111 |
0.06 |
|
22 |
32 |
38 |
18 |
6.5 |
6.6 |
73 |
M25×1.5 |
160 |
152 |
105 |
0.06 |
|
24 |
35 |
45 |
18 |
6.5 |
8.75 |
105 |
M30×1.5 |
220 |
185 |
127 |
0.08 |
|
25 |
35 |
45 |
18 |
6.5 |
8.8 |
110 |
M30×1.5 |
220 |
178 |
127 |
0.07 |
|
28 |
36 |
45 |
18 |
6.5 |
8.55 |
120 |
M32×1.5 |
220 |
159 |
124 |
0.06 |
|
28 |
40 |
52 |
18 |
6.5 |
10.6 |
149 |
M35×1.5 |
340 |
188 |
141 |
0.09 |
|
30 |
40 |
52 |
19.5 |
7 |
10.6 |
160 |
M35×1.5 |
340 |
164 |
123 |
0.09 |
|
32 |
42 |
52 |
19.5 |
7 |
10.6 |
170 |
M36×1.5 |
340 |
154 |
117 |
0.09 |
|
35 |
45 |
58 |
21.5 |
8 |
13.1 |
230 |
M40×1.5 |
480 |
153 |
120 |
0.11 |
|
36 |
45 |
58 |
21.5 |
8 |
13.3 |
240 |
M40×1.5 |
480 |
149 |
120 |
0.1 |
|
38 |
48 |
58 |
21.5 |
8 |
13.1 |
250 |
M42×1.5 |
480 |
141 |
112 |
0.12 |
|
38 |
50 |
58 |
21.5 |
8 |
13.1 |
250 |
M42×1.5 |
480 |
141 |
112 |
0.14 |
|
40 |
50 |
65 |
24.5 |
10 |
15.5 |
310 |
M42×1.5 |
680 |
124 |
93 |
0.14 |
|
40 |
52 |
65 |
24.5 |
10 |
15.5 |
310 |
M45×1.5 |
680 |
120 |
93 |
0.17 |
|
42 |
55 |
65 |
25.5 |
10 |
15.2 |
320 |
M48×1.5 |
680 |
114 |
87 |
0.2 |
|
45 |
55 |
70 |
25.5 |
10 |
17.7 |
400 |
M50×1.5 |
870 |
122 |
96 |
0.16 |
|
45 |
57 |
70 |
25.5 |
10 |
17.7 |
400 |
M50×1.5 |
870 |
122 |
96 |
0.2 |
|
48 |
60 |
75 |
25.5 |
10 |
20.8 |
500 |
M55×2 |
970 |
135 |
105 |
0.21 |
|
50 |
60 |
75 |
25.5 |
10 |
20.8 |
520 |
M55×2 |
970 |
130 |
105 |
0.18 |
|
50 |
62 |
75 |
25.5 |
10 |
20.8 |
520 |
M55×2 |
970 |
130 |
105 |
0.22 |
|
55 |
65 |
80 |
27.5 |
12 |
22 |
610 |
M60×2 |
1100 |
103 |
84 |
0.21 |
|
55 |
68 |
80 |
27.5 |
12 |
22 |
610 |
M60×2 |
1100 |
103 |
84 |
0.28 |
|
56 |
68 |
80 |
27.5 |
12 |
22 |
620 |
M60×2 |
1100 |
101 |
82 |
0.26 |
|
60 |
70 |
85 |
30 |
12 |
26.6 |
800 |
M65×2 |
1300 |
113 |
93 |
0.24 |
|
60 |
73 |
85 |
30.5 |
12 |
26.6 |
800 |
M65×2 |
1300 |
113 |
93 |
0.33 |
|
63 |
79 |
92 |
30.5 |
14 |
31.1 |
980 |
M70×2 |
1600 |
107 |
86 |
0.43 |
|
65 |
79 |
92 |
30.5 |
14 |
31 |
1010 |
M70×2 |
1600 |
104 |
86 |
0.38 |
|
70 |
84 |
98 |
31.5 |
14 |
35.4 |
1240 |
M75×2 |
2000 |
110 |
92 |
0.42 |
|
