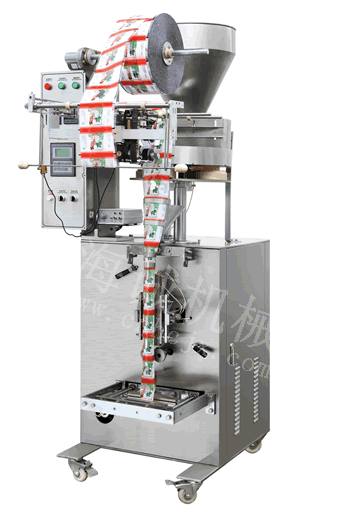

用途：Use
|
|
適合于瓜子、巧克力、小餅干、花生、小米、種子、開心果、咖啡、青豆、茶葉、白砂糖、雞精、麥片、食鹽、干燥劑等顆粒狀物料自動化包裝。
|
|
Suitable for automatic packaging particle materials like all kinds of nuts, chocolate,biscuits, peanuts,grain, seeds,pistachio,coffee,lima beans,tea,sugar,chicken essence,oat cereals,salt and desiccant.
|
|
|
|
特點：Features
|
1.設計合理，結構簡潔。
2.單片機、步進電機控制，袋長設定方便，準確。
3.調速簡單、快捷。
4.選配裝置：連包控制裝置、充氣裝置(氣源自備)。
|
This is suitable for automatic packaging particle materials such as
sweets, peanuts, nuts seeds, grain, coffee and tea.
Reasonable design, simple structure.
Controlled by single-chip computer, stepping motor, convenient
and correct bag length setting.
Simple, fast speed regulation.
Optional:continuous-packaging control device, gas-filled device
(air source supplied by users).
|
|
|
|
主要技術參數 Main Technical parameter
|
|
|
|
包裝速度
|
Packing speed
|
15-60bags/min
|
|
制袋尺寸
|
Bag-making size
|
(L)60-250mm (W)60-180mm
|
|
計量范圍
|
Filling range
|
50-850ml
|
|
包裝膜寬
|
Film width
|
120-400mm
|
|
包裝材料
|
Packing materials
|
OPP/CPP PET/PE 等復合材料
|
|
薄膜厚度
|
Film thickness
|
0.04-0.08mm
|
|
膜卷直徑
|
Film roll diameter
|
Max. 320mm
|
|
電源功率
|
Power supply
|
AC220V 50Hz 2.5kw
|
|
機器尺寸
|
Machine dimensions
|
(L)1200×(W)900×(H)2150mm
|
|
整機重量
|
Machine weight
|
300kg
|
|
|
