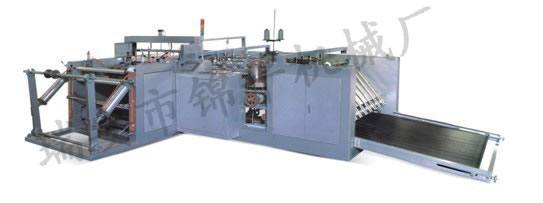

JQ-SCD-1200×800編織袋自動切縫機

Automatic PP Woven Bag Cutting And Sewing Machine

特點Features

1、自動完成編織袋簡布的定長熱切割和底部縫紉，節(jié)省勞力。

2、采用伺服電機驅動，光碼器計長，精確控制袋長。

3、熱切割后袋子不粘連，易開口。

4、氣動上卷，操作方便省力。

5、雙折邊、單折靈活運用。

1. It can automatically accomplish the normal-length cutting as well as the

    hemming for the woven cloth in roll, which saves labors forces.

2. It adopts the servo motor to drive and the optical code meter to count the

    length, which precisely controls the length of bags.

3. After the heating cutting, the plackets of bags are easy to open, not conglutinated.

4. By pneumatic up-coiling, the operation is so convenient.

5. Double hem, single fold use agility.

主要技術參數(shù)Main technical parameters

最大布卷直徑   Max. Diameter of cloth roller(mm)        1200mm

最大裁切寬度   Max. Cutting width(mm)                800mm

裁切長度       Cutting length(mm)                    600-1200mm

裁切精度       Cutting precision(mm)                  ±4mm

折疊寬度       Folding width(mm)                     20-30mm

生產(chǎn)能力       Production capacity(pcs/m)              10-45只/分

總功率         Gross power(kw)                       6kw

重量           weight(kg)                            約2500kg

外形尺寸       Overall Dimensions(LWH)(mm)          6800x1800x1200
